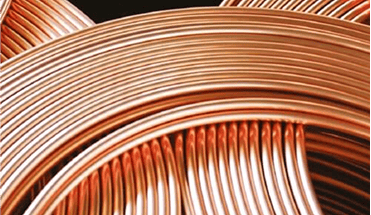

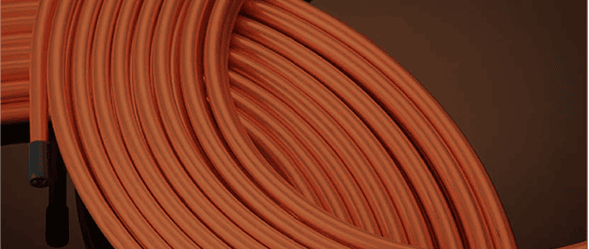

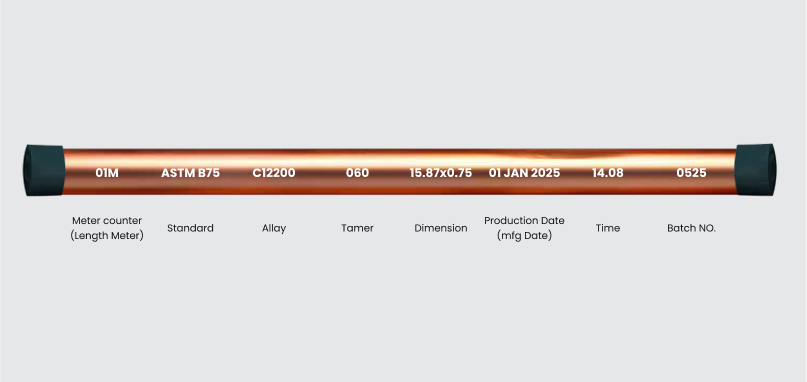

Seamless copper tubes shaped into compact pancake coils, ideal for flexible installation in HVAC and refrigeration systems. Meter-by-meter engraving on the tube surface simplifies usage and measurement. Custom sizes are available upon request to meet various project needs.
| W.T O.D | mm | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.55 | 0.6 | 0.65 | 0.7 | 0.75 | 0.8 | 0.9 | 1.0 | 1.14 | 1.24 | 1.42 | 1.5 | 1.65 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | 0.012 | 0.014 | 0.016 | 0.018 | 0.020 | 0.021 | 0.023 | 0.025 | 0.028 | 0.030 | 0.032 | 0.035 | 0.039 | 0.045 | 0.049 | 0.056 | 0.059 | 0.065 |
| 4.76 | 3/16 | ✓ | ✓ | ||||||||||||||||
| 6 | ✓ | ||||||||||||||||||
| 6.35 | 1/4 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||
| 7.93 | 5/16 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||
| 9.52 | 3/8 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 10 | ✓ | ||||||||||||||||||
| 12 | ✓ | ✓ | |||||||||||||||||
| 12.7 | 1/2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 14 | ✓ | ||||||||||||||||||
| 15 | ✓ | ||||||||||||||||||
| 15.87 | 5/8 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||
| 18 | ✓ | ✓ | ✓ | ✓ | |||||||||||||||
| 19/05 | 3/4 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||
| 22/22 | 7/8 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| O.D | W.T | Length | Weight/m | ||
|---|---|---|---|---|---|
| mm | in | mm | in | m | kg |
| 6.35 | 1/4 | 0.63 | 0.025 | 5/15/30/50 | 0.1 |
| 9.52 | 3/8 | 0.15 | |||
| 12.7 | 1/2 | 0.21 | |||
| 15.87 | 5/8 | 0.26 | |||
| 19.05 | 3/4 | 0.32 | |||
| 6.35 | 1/4 | 0.7 | 0.028 | 5/15/30/50 | 0.111 |
| 9.52 | 3/8 | 0.17 | |||
| 12.7 | 1/2 | 0.23 | |||
| 15.87 | 5/8 | 0.29 | |||
| 19.05 | 3/4 | 0.36 | |||
| 6.35 | 1/4 | 0.75 | 0.030 | 5/15/30/50 | 0.18 |
| 9.52 | 3/8 | 0.18 | |||
| 12.7 | 1/2 | 0.25 | |||
| 15.87 | 5/8 | 0.31 | |||
| 19.05 | 3/4 | 0.35 | |||
Packaging
Pancake coils are meter-marked along their length and have both ends sealed to prevent contamination. Each coil is securely packed in durable cartons or stacked on sturdy wooden pallets for bulk shipping. Optional nitrogen purging ensures the internal cleanliness and prevents oxidation during storage and transportation.
Each Asteria Copper Pancake Coil is carefully packed to ensure protection and stability during storage and transportation. The following table shows the standard carton, wooden pallet and chipboard pallet dimensions available for different coil sizes:
| O.D (mm) | Carton Dimension (mm) | Wooden Pallet Dimension (mm) | Chipboard Pallet Dimension (mm) | ||||
|---|---|---|---|---|---|---|---|
| 6.35 | 528*603 | 1076*623 | 110*120 | ||||
| 7.93 | 528*603 | 1076*623 | 110*120 | ||||
| 9.52 | 588*672 | 1196*692 | 110*120 | ||||
| 12.7 | 648*741 | 1316*761 | 110*130 | ||||
| 15.87 | 708*810 | 1436*830 | |||||
| 19.05 | 778*890 | 1576*910 | |||||
| 22.22 | 828*948 | 1676*968 |
Asteria Copper Pancake Coils are designed for precision, reliability and performance in compact systems that require flexibility and excellent heat transfer. Manufactured from 99.9% Cu-DHP copper under strict EN 12735-1 standards, these coils are annealed, end-capped and supplied in continuous rolls for easy installation. As one of the trusted copper pancake coil suppliers in the UAE and global markets, Asteria ensures every coil meets the highest international standards for HVAC, refrigeration and industrial use!
Asteria’s pancake tube copper coils combine advanced manufacturing with exceptional performance for a wide range of industrial and commercial systems. Some of key features of Copper Pancake Coils in Asteria include:
Asteria produces pancake copper coils in several sizes and configurations to serve different industry needs. Before you place an order in Asteria, check below table and see types and sizes of copper pancake coils:
| Type | Outer Diameter (mm) | Wall Thickness (mm) | Length (m) | Common Use |
|---|---|---|---|---|
| Type A (Light Wall) | 6.35 – 12.7 | 0.6 – 0.8 | 15 – 30 | Residential HVAC & air conditioning units |
| Type B (Medium Wall) | 9.52 – 19.05 | 0.8 – 1.0 | 15 – 30 | Refrigeration and cooling systems |
| Type C (Heavy Wall) | 15.88 – 25.4 | 1.0 – 1.2 | 15 – 30 | Industrial chillers and high-pressure systems |
Crucial Point: All pancake coil copper tubes are end-capped, nitrogen-filled and sealed for protection during transportation and storage.
Copper Pancake Tubes from Asteria are widely used across multiple industries that demand compact, high-performance piping.
These pancake coils ensure optimal performance while reducing installation time and maintenance costs.
Partnering with Asteria means choosing a supplier that values quality, precision and sustainability. In below table you can check what Asteria give to its customers and what you could expect:
| Asteria Advantage | What you expect! |
|---|---|
| International Standards | Manufactured under EN 12735-1, ISO-certified processes ensuring global compliance. |
| Sustainable Production | Eco-friendly manufacturing methods and recyclable copper materials. |
| High Purity Copper | Made from 99.9% Cu-DHP for superior conductivity and durability. |
| Quality Control | Each coil undergoes dimensional, pressure and surface integrity testing. |
| Fast Global Delivery | Reliable supply chain covering UAE, GCC, Europe and Asia. |
| Technical Support | Expert assistance for product selection, system integration and installation guidance. |
Ordering from Asteria is simple, transparent and efficient:
All shipments are guaranteed for safe delivery and each coil is individually capped and packed to prevent damage during transport!
Our team in Asteria combines precision engineering, sustainability and certified quality to deliver high-performance copper coils trusted globally.
Asteria offers diameters from 6.35 mm to 25.4 mm, with custom lengths available upon request.
Yes. Asteria supplies copper pancake coils across UAE, GCC, Europe and Asia, with full export documentation.
Absolutely. Their high thermal conductivity and flexibility make them ideal for HVAC, refrigeration and heat exchange systems.
Every coil undergoes rigorous testing; including pressure resistance, surface inspection and dimensional checks; before packaging.
